BIGZEE GL and PRO series

The best-selling CNC Router Machine for high precision milling

The BIGZEE CNC routers is specially optimized for the 2D and 3D milling, cutting, drilling, and engraving. The big worktop makes the machine perfect for milling panels. No matter if you want to mill, cut or engrave the material. The machine is well known for its precision during each working process.


Get a commercial offer!

Name *
Phone number *
E-mail *
Country *

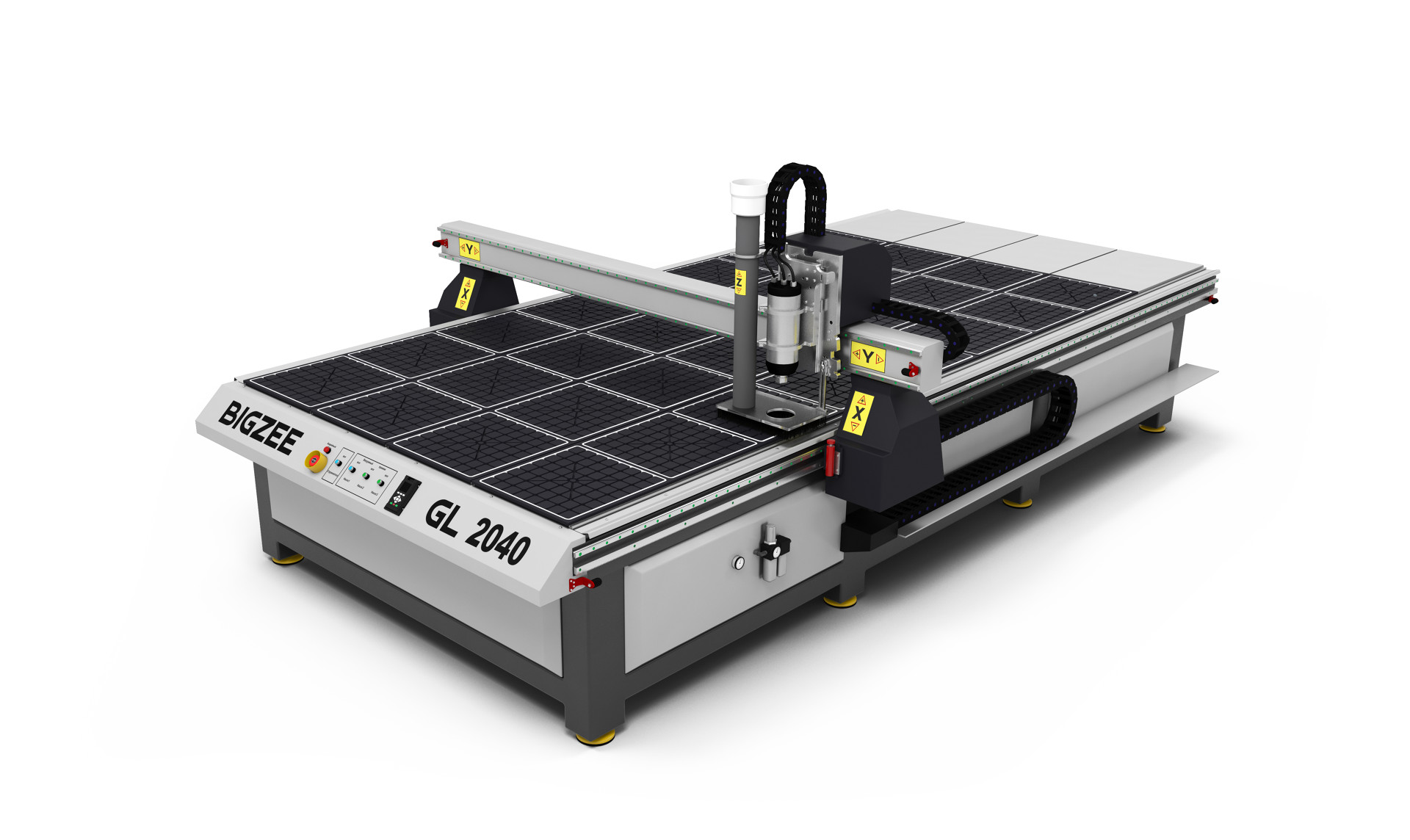

BIGZEE GL SERIES

MATERIALS

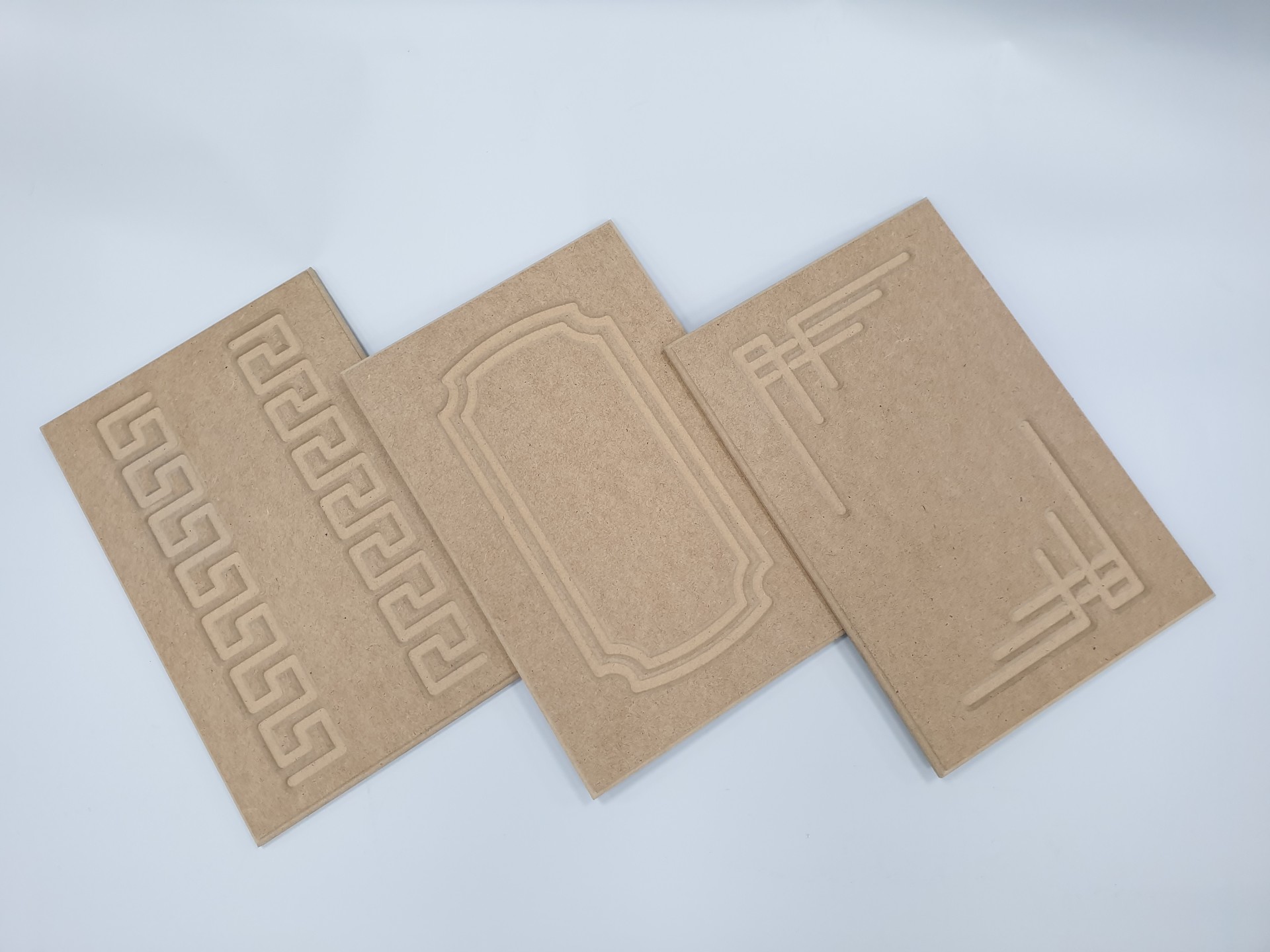

MDF

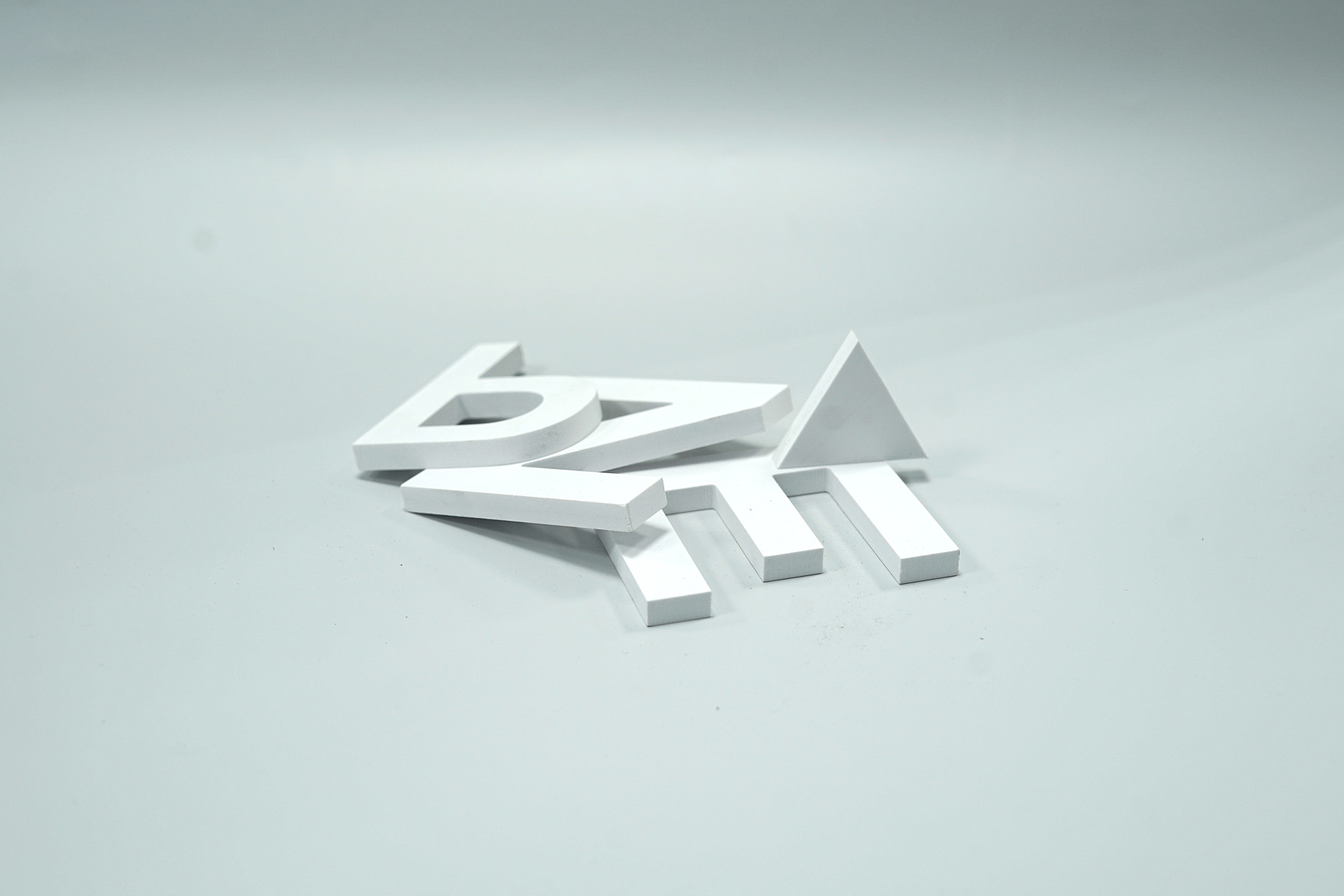

PVC

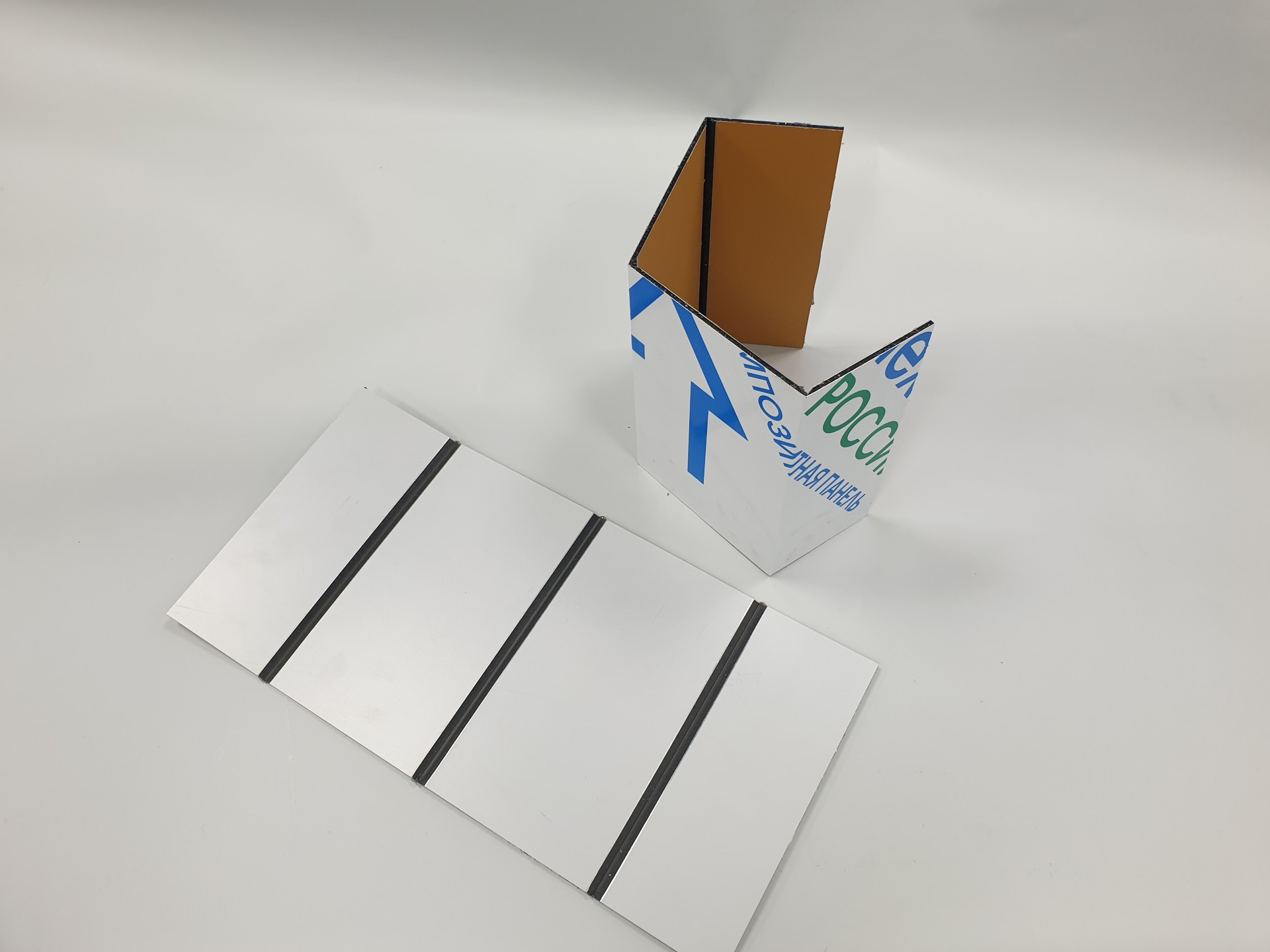

Composite

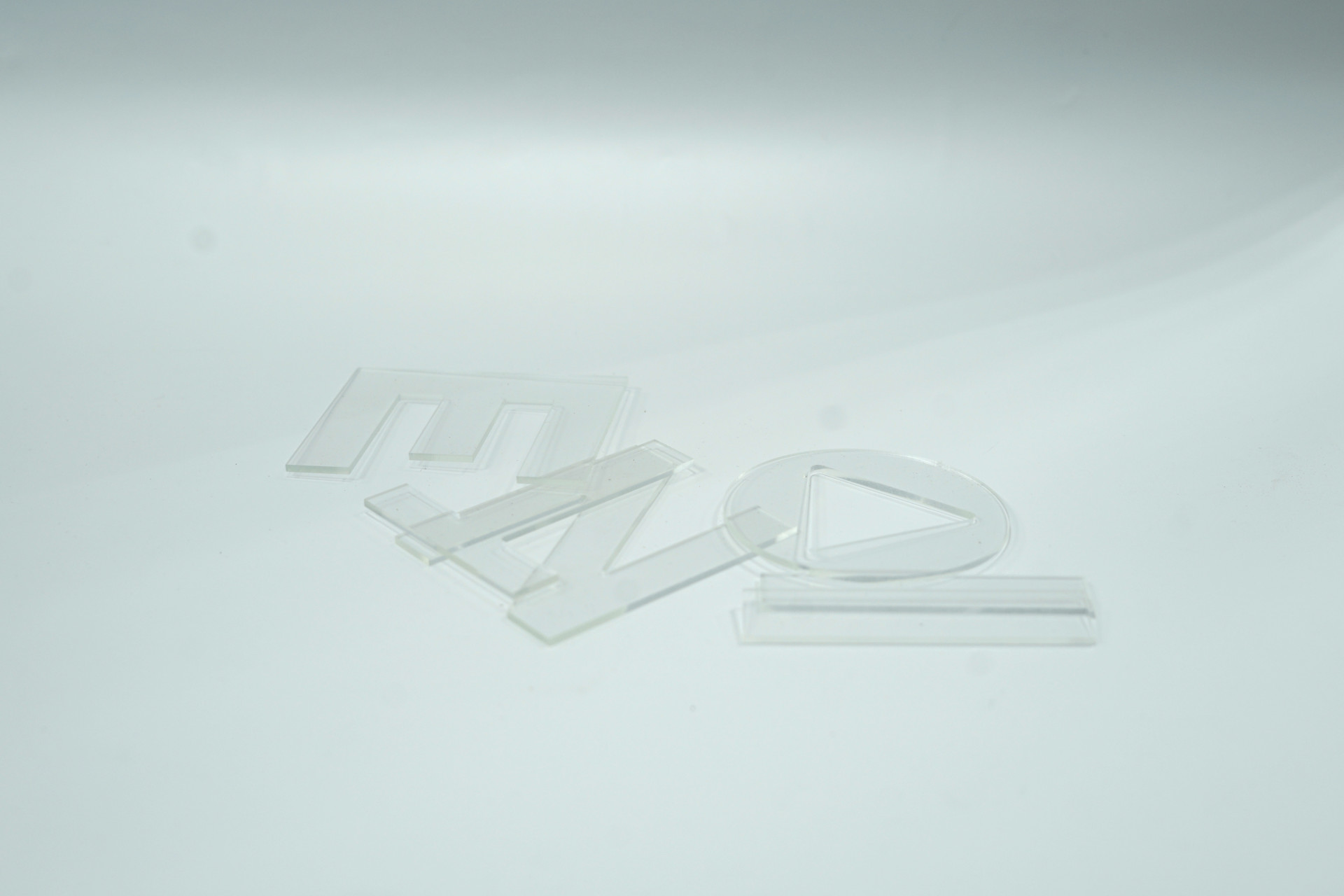

Acrylic

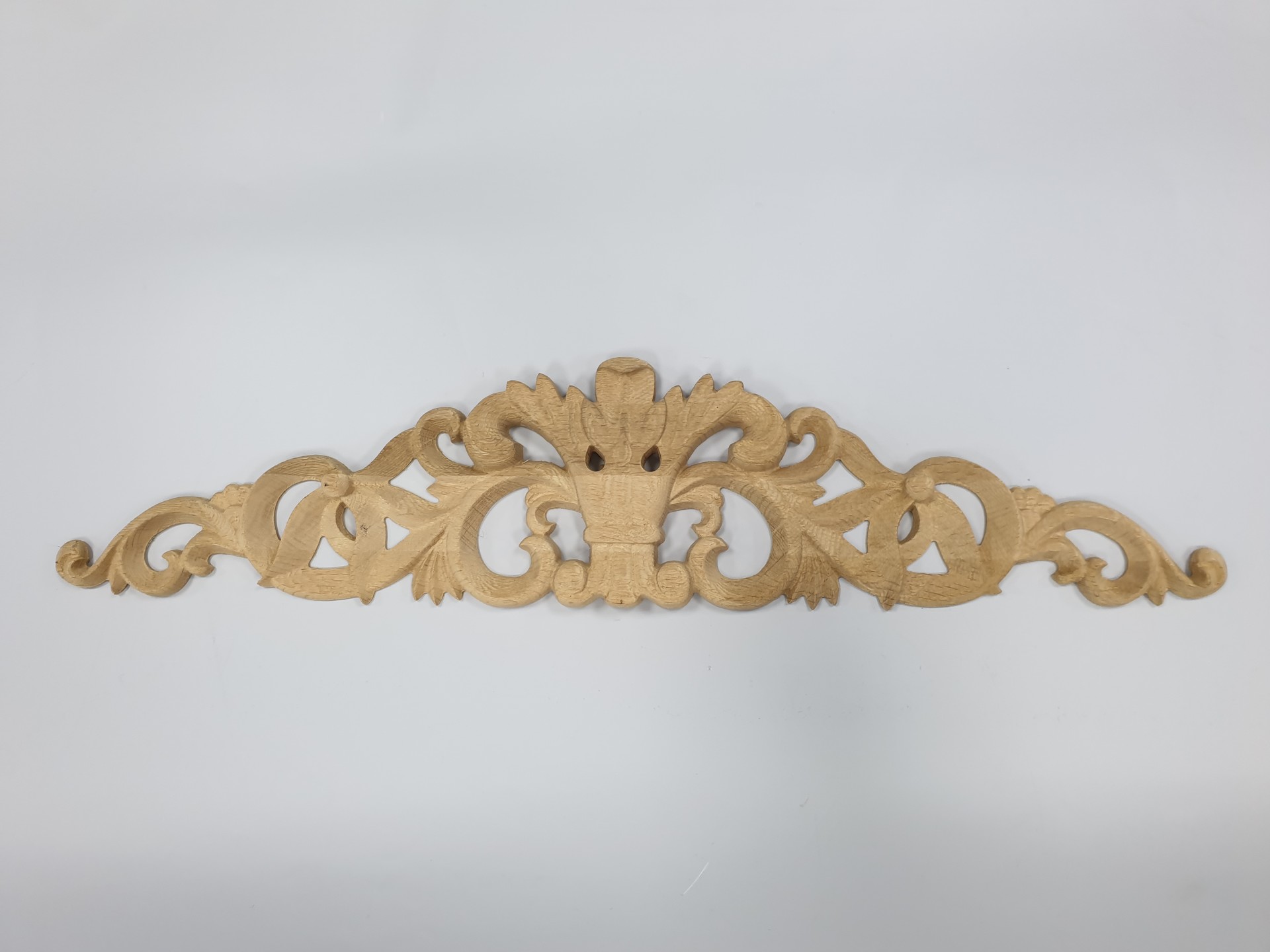

Wood


APPLICATIONS

VIDEOS

MDF

About BIGZEE

METALL

STANDARD FEATURES BIGZEE GL SERIES

  • The CNC mill comes with a solid steel frame, high-quality ball screws on each axis.
  • The professional scalable controller allows you to cope with the most difficult tasks.
  • The solid cast steel frame provides a milling process without vibration for top 3D and 2D results.
  • The steel beam. Steel structures are reinforced with heavy ribs to resist flex and dampen vibrations
  • Open machine bed for easy loading and unloading by forklift or overhead crane.
  • Spindle 2.2 KW, 24000 rpm with liquid cooling, optional 3 / 4 / 5,5 / 7,5 KW
  • High precision ball screw on the Z axis (anchored at both ends). Z-Axis clearance 210 mm.
  • Drive system:  high precision stepping motors 6n/m at X, Y-axis
  • High-speed servo motor 400 W at Z-axis
  • Remote Control via the Internet
  • Helical gear rack on X, Y-axis
  • Auto Z sensor - material height gauge
  • High quality, shielded cables guarantee reliability
  • Automatic gantry alignment
  • Voltage 380 V, Frequency 50 Hz

MODELS



PROCESS AREA Y*X*Z

BIGZEE GL 13131340 mm x 1300 mm x 210 mm
BIGZEE GL 13181340 mm x 1800 mm x 210 mm
BIGZEE GL 13251340 mm x 2550 mm x 210 mm
BIGZEE GL 16201640 mm x 2050 mm x 210 mm
BIGZEE GL 16301640 mm x 3100 mm x 210 mm
BIGZEE GL 16401640 mm x 4100 mm x 210 mm
BIGZEE GL 20302080 mm x 3100 mm x 210 mm
BIGZEE GL 20402080 mm x 4100 mm x 210 mm

ADDITIONAL OPTIONS BIGZEE GL SERIES

SPINDLE

ATC SPINDLE

KNIFES

VACUM BLOWERS

ROTARY VANE VACUUM PUPMS

OTHERS

Upgrade to BIGZEE 3,2 kWt spindle, 24000RPM, water cooling / inverter (220volts, 1 phase), ER20, 11.2KG

Upgrade to BIGZEE 5.5 kWt spindle, 24000RPM, water cooling / inverter (380volts, 3 phase), ER25, 25KG

Upgrade to HSD 3 kWt spindle, 24000RPM, electric cooling fan  / inverter (220volts, 1phase)

Upgrade to HSD 4 kWt spindle, 24000RPM, electric cooling fan  / inverter (380volts, 3 phase)

Upgrade to HSD 7,5 kWt spindle, 18000RPM, cooling fan  / inverter (380volts, 3 phase)

Upgrade to SEMI ATC  GDL 9 kWt spindle, 18000RPM, electric cooling fan/ inverter, with  3 PCS ISO30 cones, without linear tool changer

Upgrade to ATC HSD 4.5kWt spindle, 24000RPM, electric cooling fan/ inverter, with the linear tool changer  8 PCS ISO30 cones

Upgrade to ATC HSD 9,0kWt spindle, 24000RPM, lectric cooling fan/ inverter, with the linear tool changer 8 PCS HSK63 cones

Tangentional knife

Servo motor for A axis (Tangentional knife)

Knife matting

380 volts, 3 phase

Vacuum bed with the 4 kWt blower, -325mbar, 312m3/h, 2 zones for models BIGZEE PRO 1325, 1620 with vac protection

Vacuum bed with the 8 kWt blower, -325mbar, 624m3/h, 4 zones for models BIGZEE PRO 1630, 1640, 2030 with vac protection

Vacuum bed with the 12 kWt blower, -325mbar, 936m3/h, 6 zones for model BIGZEE PRO 2040 with vac protection

380 VOLTS, 3 Phase

Vacuum bed with the T-Groves, with the 4kWt BECKER, -900mbar, 129m3/h, 1-2 zones for models BIGZEE PRO 1313, 1318

Vacuum bed with the T-Groves, with the 8 kWt BECKER, -900mbar, 258m3/h, 2 zones for models BIGZEE PRO 1325, 1620

Vacuum bed with the T-Groves, with the 12 kWt BECKER, -900mbar, 387m3/h, 4 zones for models BIGZEE PRO 1630, 1640, 2030

Vacuum bed with the T-Groves, with the 16 kWt BECKER, -900mbar, 516m3/h, 6 zones for model BIGZEE PRO 2040

Vacuum holders with the pop up pins: (220 volts, 1 phase)

3 vacuum holders, 3 pop up pins, rotaty vacuum vane pump SHMALTZ , -850mbar, 8m3/h, 5 pcs spacers under the corners

Pop up pins (retractable pneumatic pins for aligment support -3 pcs)

Dust Collector with the Dust exctractor (220 volts, 1 phase)

Pneumatic dust collector with the dust exctractor (220 volts, 1 phase) for the Auto Tool Changer

Cooling and Spraying Unit 1 pcs

Cooling and Spraying Unit INTELECT for 1 pcs

Professional contour cutting system BIGZEE Vision

Dual Z carriage

Extended Z axis clearance & process up to 410 mm

Servo mototrs 750 Watts for the X1, X2 and Y axis

Stability system on racks

Z-axis electromagnet brake for each vertical axis

Tool length measure switch

4 th axis max D170 mm, square 120x120 mm

4 th axis max D280 mm, square 200x200 mm (required Z min 310mm)

Get a commercial offer!

Name *
Phone number *
E-mail *
Country *

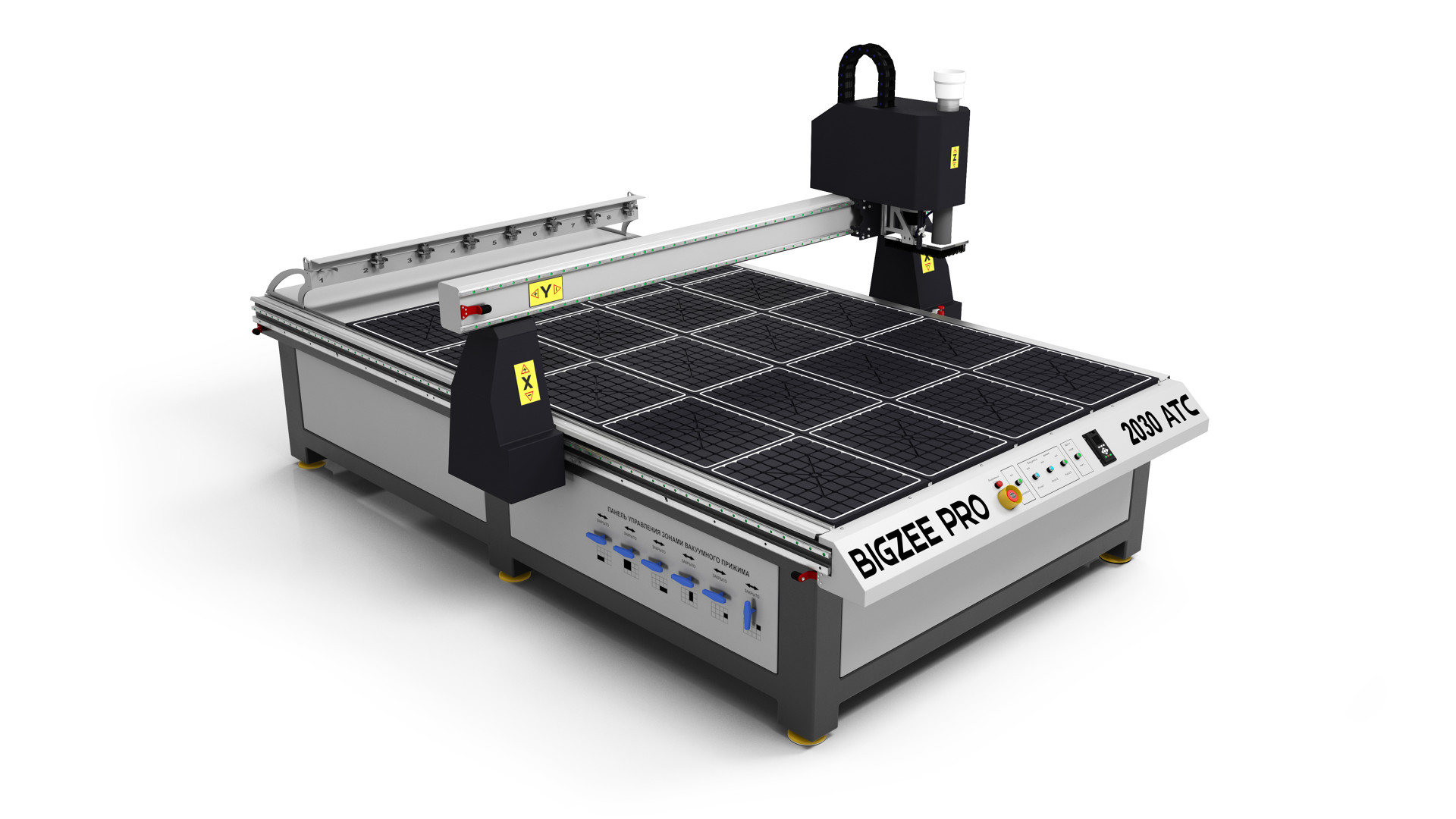

BIGZEE PRO SERIES

STANDARD FEATURES BIGZEE PRO SERIES

  • Professional multi-axes controller
  • Settings remote diagnostic via Internet
  • Powerful Panasonic precision servo motors with planetary gears along X and Y axes, moving speed is up to 30 m/min. HSD spindles, 24'000 rpm with air cooling from 2,2 up to 9kW
  • The heavy duty all-welded vibration-free machine frame made of structural steel
  • Spur toothed rack along X and Y axes
  • Movement stabilization system
  • Z axes electro-magnetic brake
  • Z axes ball/screw pair; traverse - 210 mm
  • Automatic tool length measurement system
  • Material thickness automatic measurement system
  • Highest cables flexibility
MODELSPROCESS AREA Y*X*Z
BIGZEE PRO 1325 1340 mm x 2550 mm x 210 mm
BIGZEE PRO 16201640 mm x 2050 mm x 210 mm
BIGZEE PRO 16301640 mm x 3100 mm x 210 mm
BIGZEE PRO 16401640 mm x 4100 mm x 210 mm
BIGZEE PRO 20302080 mm x 3100 mm x 210 mm
BIGZEE PRO 20402080 mm x 4100 mm x 210 mm

ADDITIONAL OPTIONS BIGZEE PRO SERIES

SPINDLE

ATC SPINDLE

KNIFES

VACUM BLOWERS

ROTARY VANE VACUUM PUPMS

OTHERS

Upgrade to BIGZEE 3,2 kWt spindle, 24000RPM, water cooling / inverter (220volts, 1phase), ER20, 11.2KG

Upgrade to BIGZEE 5.5 kWt spindle, 24000RPM,water cooling / inverter (380volts, 3phase), ER25, 25KG

Upgrade to HSD 3 kWt spindle, 24000RPM, electric cooling fan / inverter (220volts, 1phase)

Upgrade to HSD 4 kWt spindle, 24000RPM, electric cooling fan / inverter (380volts, 3phase)

Upgrade to HSD 7,5 kWt spindle, 18000RPM, cooling fan / inverter (380volts, 3phase)

Upgrade to SEMI ATC  GDL 9 kWt spindle, 18000RPM, electic cooling fan / inverter, with 3 PCS ISO30 cones, without linear tool changer

Upgrade to ATC HSD 4.5kwt spindle, 24000RPM, electic cooling fan / inverter, with the linear tool changer 8 PCS ISO30 cones

Upgrade to ATC HSD 9,0kwt spindle, 24000RPM, electic cooling fan / inverter, with the linear tool changer 8 PCS HSK63 cones


Tangentional knife

Servo motor for A axis (Tangentional knife)

Knife matting


380 volts, 3 phase

Vacuum bed with the 4 kWt blower, -325mbar, 312m3/h, 2 zones for models BIGZEE PRO 1325, 1620 with vac protection
Vacuum bed with the 8 kWt blower, -325mbar, 624m3/h, 4 zones for models BIGZEE PRO 1630, 1640, 2030 with vac protection
Vacuum bed with the 12 kWt blower, -325mbar, 936m3/h, 6 zones for model BIGZEE PRO 2040 with vac protection

380 VOLTS, 3 Phase

Vacuum bed with the T-Groves, with the 4kWt BECKER, -900mbar, 129m3/h, 1-2 zones for models BIGZEE PRO 1313, 1318
Vacuum bed with the T-Groves, with the 8 kWt BECKER, -900mbar, 258m3/h, 2 zones for models BIGZEE PRO 1325, 1620
Vacuum bed with the T-Groves, with the 12 kWt BECKER, -900mbar, 387m3/h, 4 zones for models BIGZEE PRO 1630, 1640, 2030
Vacuum bed with the T-Groves, with the 16 kWt BECKER, -900mbar, 516m3/h, 6 zones for model BIGZEE PRO 2040

Vacuum holders with the pop up pins: (220 volts, 1 phase)

3 vacuum holders, 3 pop up pins, rotaty vacuum vane pump SHMALTZ , -850mbar, 8m3/h, 5 pcs spacers under the corners

Pop up pins (retractable pneumatic pins for aligment support -3 pcs)

Dust Collector with the Dust exctractor (220 volts, 1 phase)

Pneumatic dust collector with the dust exctractor (220 volts, 1 phase) for the Auto Tool Changer

Cooling and Spraying Unit 1 pcs

Cooling and Spraying Unit INTELECT for 1 pcs

Professional contour cutting system BIGZEE Vision

Dual Z carriage

Extended Z axis clearance & process from 210 mm to 310 mm

Extended Z axis clearance & process from 210 mm to 410 mm

Servo motors 750 Watts for the X1, X2 and Y axis

Stability system on racks

Z-axis electromagnet brake for each vertical axis

Tool length measure switch

4 th axis max D170 mm, square 120x120 mm

4 th axis max D280 mm, square 200x200 mm ( required Z min 310мм)
